| R210LC-7_7A YÜRÜYÜŞ ŞANZIMANI | |||
| R210LC-7_7A | Ürün Kodu | Ürün İsmi | Miktar |
| * | 31N6-40040BG | T/Reduction Gear | 1 |
| * | 31N6-40041BG | T/Reduction Gear | 1 |
| 1 | XKAQ-00217 | Housing | 1 |
| 2 | XKAQ-00218 | Bearing-Main | 2 |
| 3 | XKAQ-00986 | Bearing-Main | 2 |
| 4 | XKAQ-00219 | Seal-Floating | 1 |
| 5 | XKAQ-00220 | Shim | 1 |
| 6 | XKAQ-00221 | Retainer | 1 |
| 7 | XKAQ-00223 | Pin-Parallel | 2 |
| 8 | XKAQ-00224 | Gear-Ring | 1 |
| 9 | XKAQ-00225 | Coupling | 1 |
| 10 | 39Q6-42170 | Coupling | 1 |
| 11 | XKAQ-00226 | Carrier 2 Assy | 1 |
| 12 | XKAQ-00227 | Carrier 2 | 1 |
| 13 | XKAQ-00228 | Gear-Planet 2 | 4 |
| 14 | XKAQ-00229 | Bearing-Needle 2 | 8 |
| 15 | XKAQ-00230 | Washer-Thrust | 8 |
| 16 | XKAQ-00231 | Pin 2 | 4 |
| 17 | XKAQ-00232 | Pin-Spring | 4 |
| 18 | XKAQ-00208 | Ring-Thrust | 2 |
| 19 | XKAQ-00233 | Carrier Assy 1 | 1 |
| 20 | XKAQ-00653 | Carrier Assy 1 | 1 |
| 21 | XKAQ-00234 | Carrier 1 | 1 |
| 22 | XKAQ-00235 | Gear-Sun 2 | 1 |
| 23 | XKAQ-00236 | Ring-Retaining | 1 |
| 24 | XKAQ-00237 | Gear-Planet 1 | 3 |
| 25 | XKAQ-00238 | Bearng-Needle 1 | 3 |
| 26 | XKAQ-00239 | Washer-Thrust | 6 |
| 27 | XKAQ-00657 | Washer-Thrust | 6 |
| 28 | XKAQ-00240 | Pin 1 | 3 |
| 29 | XKAQ-00241 | Pin-Spring | 3 |
| 30 | XKAQ-00655 | Pin-Spring | 3 |
| 31 | XKAQ-00242 | Gear-Sun 1 | 1 |

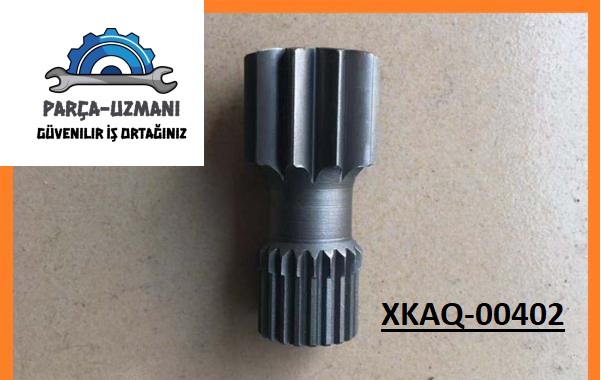

| 32 | XKAQ-00402 | Gear-Sun 1 | 1 |
| 33 | XKAQ-00795 | Gear-Sun 1 | 1 |
| 34 | XKAQ-00243 | Cover | 1 |
